Product Display
Magnetic scraper
Magnetic scraper
●Fine powdered chips suitable for magnetic (less than 30mm).
●Use a magnet to attract magnetic chips and coarsely filter the coolant.


Performance
Geared Motor 0.2KW 4P  AC 220/380V
Chain C2052H Pitch 31.75mm
Conveying Speed 0.9m/min [50Hz], 1.1m/min [60Hz]
Conveying Capacity W=300時(shí)      0.02m3/h
Safety Device Forque limiter+LS
Chip Objects Fine scrap( less than 30mm)
Optional components





 Control panel, CE control panel
Sleeve shaft type geared motor (50 J|  type)
Torque limiter+ Approaching switch type safety device
Coolant recovery device (for recovering of coolant mixing with scrap)

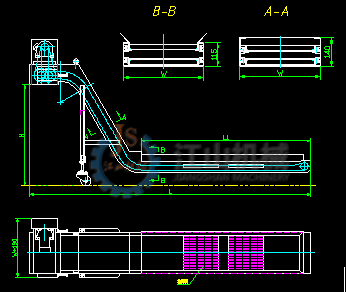

Size of each part
    W 250,300,350,400,450,500,550,600
    α 30°，45°，60°，75°（α=°直線型也可制作）
    H  α= 600時(shí)246.8以上
    L  10000以下
    L3  L3>W

Wedge filter filter type
●Suitable for non-magnetic chips floating in the coolant such as aluminum (less than 50mm).
●The coolant is coarsely filtered with an accuracy of about 200 μm.











Performance
Geared Motor 0.2KW 4P  AC 220/380V
Chain C2052H Pitch 31.75mm
Conveying Speed 0.9m/min  [50Hz] ,    1.1 m/min  [60Hz]
Conveying Capacity W=300時(shí) 0.02m3/h
Safety Device Forque limiter+LS
Chip Objects Fine scrap( less than 30mm)
Optional components





 Control panel, CE control panel
Sleeve shaft type geared motor (50|l  type)
Torque limiter+ Approaching switch type safety device
Coolant recovery device (for recovering of coolant mixing with scrap)

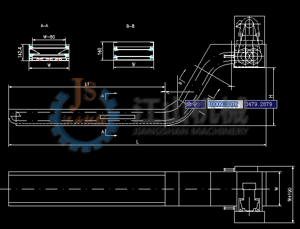

Size of each part
    W 250,300,350,400,450,500,550,600
    α  30°，45°，60°，75°(α=0° straight type can also be made)
    H  α= 600 hours and 246.8 or more '
    L  10000 or less
    L3  L3>W
Pre：Drum filter type scraper type + high pressure water tank device
